The majority of commissions are from private individuals, however previous customers include:

ENGLISH HERITAGE



Buildings dated in Capel, Surrey

Building DESCRIPTION / REPORT PHOTOGRAPH
Clock House Moir, A. K. 2003. Dendrochronological analysis of timbers from Clock House, Capel, Surrey. Tree-Ring Services, Report: CACH/01/03.

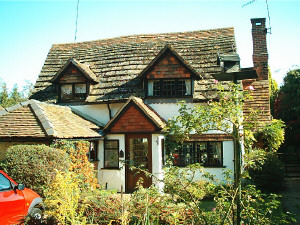

Ketleas Moir, A K, 2004 Dendrochronological analysis of oak timbers from Ketleas, Capel, Surrey, England., Tree-Ring Services, Dendro Rep: CAKE/04/04

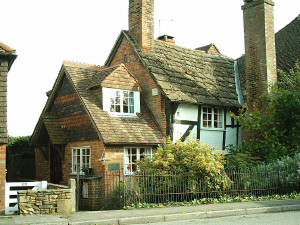

Old Post Office Moir, A K, 2004 Dendrochronological analysis of oak timbers from the Old Post Office, Capel, Surrey, Tree-Ring Services, Dendro Rep, CAPO/05/04
The Old House

Moir, A K, 2003 Dendrochronological analysis of oak timbers from The Old House, Capel, Surrey, England., Tree-Ring Services, Dendro Rep, CAOH/38/03

St. John the Baptist Moir, A K, 2003 Dendrochronological analysis of oak timbers from St. John the Baptist, Capel, Surrey, England., Tree-Ring Services, Dendro Rep, CACX/41/03
Taylors

Moir, A K, 2003 Dendrochronological analysis of oak timbers from Taylors, Capel, Surrey, England, Tree-Ring Services, Dendro Rep, CATA/36/03

Temple Elfande Moir, A K, 2003 Dendrochronological analysis of oak timbers from Temple Elfande, Capel, Surrey, England, Tree-Ring Services, Dendro Rep, CATE/28/03
The Old House

Moir, A K, 2003 Dendrochronological analysis of oak timbers from The Old House, Capel, Surrey, England., Tree-Ring Services, Dendro Rep, CAOH/38/03



CAPEL, Clock House (TQ 175 388)           Felling date: Winter 1553/4

Posts (4/4) 1530(1+18 NM), 1528(2+12 NM), 1501(h/s?), 1552(C); Tiebeams (2/2) 1550(C?), 1531(h/s); Wall plates (0/2); Transverse beams (2/2) 1522(2+1), 1517(1); Axial beam (0/1); Rafters (2/2) 1553(C), 1553(C); Collar (1/1) 1553(C); Girding beam (1/1) 1536(h/s). Site Master 1382-1553 CAPEL-CH (t = 9.6 E.MIDLANDS;  9.0 KENT88; 7.3 LITTLEY2)

The first build was identified as 4 bays, the two centre bays being a hearth room and a narrower bay containing diamond-set, Jacobean-style chimneys with a cross-passage behind. The posts have jowls and the roof is of “three queen strut” construction.  The timbers are heavy and there are large windbraces, which are sagging, which is unusual. The spine beam in the hearth room is moulded and it has “brooch stops”, which have not hitherto been dated in Surrey. The date established is very early for a Surrey chimney house but further examination has failed to find any evidence for an earlier heating phase. (Reference VA, v34, List 135).
